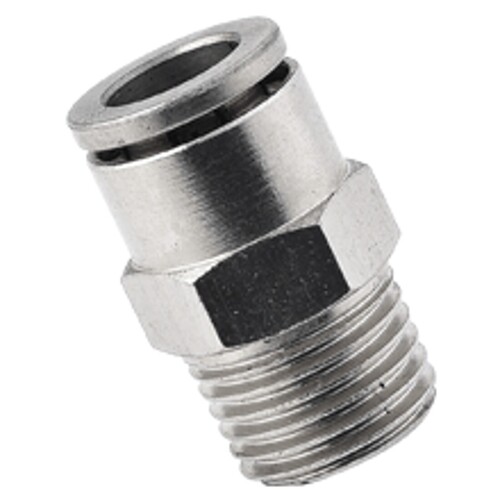

Brass push fitting Hexagon male connector

Brass push fitting Hexagon male connector Specification

Thickness
Standard wall as per push fitting design (typically 1.5 - 2.5 mm for male connectors)

Surface Treatment
Nickel plated or natural brass finish

Machining Method
CNC machined

Max Tolerance
±0.05 mm

Weight (kg)
Approx. 0.02 - 0.09 kg (depending on size)

Type
Hexagon male push fitting connector

Push Fit Size
Compatible with 4 mm to 16 mm OD tube sizes

Application
Pneumatic, compressed air, and fluid transfer systems

Installation
Tool-free, simple push-fit assembly

Material
High-quality brass

Thread Size
Available in range from 1/8'' to 1/2'' BSPT/NPT

Sealing Technology
Integrated O-ring sealing

Standards
Conforms with RoHS and ISO 9001

Corrosion Resistance
Excellent (suitable for most industrial environments)

Temperature Range
-20°C to +80°C

End Connection
One push-to-connect end, one male threaded end

Pressure Rating
Up to 16 bar (232 psi)

About Brass push fitting Hexagon male connector

Experience eminent performance with our brass push fitting Hexagon male connector-crafted from high-quality brass for illustrious durability and pristine operation. Designed with a convenient push-to-connect end and a male threaded end, it ensures rapid savings on installation time. Available in thread sizes from 1/8 to 1/2 BSPT/NPT and compatible with 4 mm to 16 mm tubes, it excels in pneumatic, compressed air, and fluid systems up to 16 bar. Corrosion-resistant and conforming to RoHS and ISO 9001, this CNC-machined connector is the optimum order for your workplace, easily grabbed for effortless assembly every time.

Effortless Integration and Specialized Features

The Brass push fitting Hexagon male connector is tailor-made for pneumatic and fluid transfer systems, offering a pristine fit thanks to its integrated O-ring sealing and CNC precision machining. With compatibility for a wide range of tube and thread sizes and resistance to industrial corrosion, its illustrious design supports seamless tool-free installation. Nickel plating, optimal tolerance, and compliance with eminent industry standards ensure the connector stands out for reliability and performance.

Available Packaging, Payment, and Supply Solutions

Goods are shipped safely in robust, custom packaging that preserves the connector's pristine finish during transport. Payment terms are flexible, ensuring swift order processing at a competitive list price for larger volumes. Our supply ability meets eminent demands, efficiently delivering bulk and custom orders across India and globally. Each parcel's tracking supports secure goods transport, keeping you informed every step of the way.

FAQ's of Brass push fitting Hexagon male connector:

Q: How is the Brass push fitting Hexagon male connector installed?

A: Installation is tool-free-simply push your compatible tube into the fitting's push-to-connect end while securing the male threaded end into your system. The integrated O-ring ensures a secure, leak-tight seal.

Q: What applications is this connector suitable for?

A: This brass hexagon connector is well-suited for pneumatic, compressed air, and fluid transfer systems. It performs reliably in industrial environments, withstanding high pressure and corrosive conditions.

Q: When should I choose this connector over conventional fittings?

A: Choose this connector when you need fast installation without tools, excellent corrosion resistance, high reliability under pressure, and compliance with RoHS and ISO 9001 for assured quality.

Q: Where can these fittings be used?

A: They can be used in factories, workshops, machinery, HVAC applications, and wherever robust pneumatic or fluid transfer connections are required.

Q: What special features does this fitting offer?

A: Notable features include integrated O-ring sealing for leak-free operation, CNC-machined precision, and versatile sizing to ensure a pristine fit for most industrial standards.
